Ham Radio Deluxe Utilities by WD5EAE

Credits:

Simon Brown (HB9DRV) for Ham Radio Deluxe

Alex Shovkoplyas (VE3NEA) for Call Parser http://www.dxatlas.com/Dev/ Darryl Wagoner (WA1GON) for TQSL and pointers

Amir Findling (K9CHP) and Chuck Catledge (AE4CW) for the many excellent suggestions

David Levine (K2DSL) for the professional critique, the readiness to test and proofreading

Anders Melander for the VersionInfo component http://melander.dk/articles/versioninfo licensed under the http://creativecommons.org/licenses/by-sa/3.0/

Requirements ………………………………………………………………………………………………………………………..4

Setting Up HRD Utilities …………………………………………………………………………………………………………4

Using HRD Utilities ………………………………………………………………………………………………………………..9

Uploading to LoTW ………………………………………………………………………………………………………………10

ZoneAlarm and Other Security Suites …………………………………………………………………………………..10

Importing Your LoTW Confirmations into HRD ……………………………………………………………………..10

Setting Your Personal Logbook Data ……………………………………………………………………………………11

Updating Logbook data from QRZ.com ………………………………………………………………………………..12

Importing eQSL Confirmations …………………………………………………………………………………………….13

Creating an HTML Logbook Export ………………………………………………………………………………………14

1.   Ham Radio Deluxe by Simon Brown HB9DRV

2.  If you will be using LoTW you need

a.  TQSL – Trusted QSL from ARRL LoTW  properly setup and working b.  Some QSOs logged in Ham Radio Deluxe to upload to LoTW

c.   This program uses the CUSTOM5 and CUSTOM6 fields of the Ham Radio Deluxe

database. Most users of HRD probably have no custom data in those fields but if you are using those fields for something else please contact me before using this program.

c.   An Internet connection if you will be doing automatic uploads to LoTW or updates to your logbook from the QRZ.com XML callsign lookup service.

Here’s how to setup the Ham Radio Deluxe Utilities program:

1) Copy the files in the zip you received to a subdirectory of your own choosing.

2) Run HRD_Utils.exe and set the location of the HRD database. The first time the program is run, it will locate the HRD database. You can change where it’s pointing by clicking the         button  and selecting a different database file.

Theitem only appears the first time the program is run. If you would like a desktop shortcut installed leave the item checked.

3) If you are using LoTW make sure the program has accurately determined where TQSL.exe is.

It should be correct but double-check it.

4) If you are using LoTW make sure the program has accurately determined the TQSL Station

Location Name.

If you don’t know what your Station Location name is, go into the Trusted QSL program and select

Station / Edit locations from the menu.

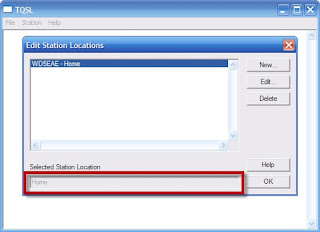

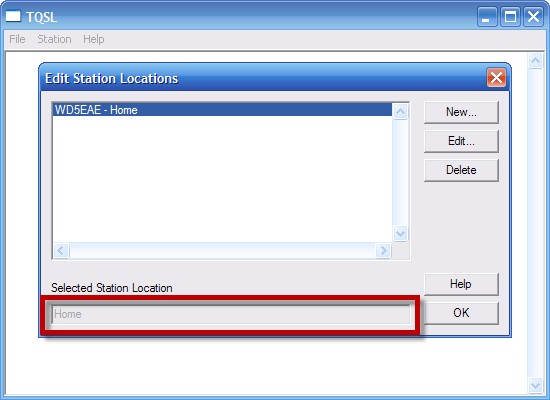

Click on the location you will be using and then notice the label at the bottom of this dialog named

“Selected Station Location”.

The text is grayed out but that’s the name you want to place into the HRD Utilities’ “TQSL Station

Location Name” field.

5) Ham Radio Deluxe Utilities allows you to participate in  HB9BZA’s project of building the LoTW Users List with complete anonymity. When you import an LoTW confirmation ADIF file, HRDU will build a list of unique callsigns found in your confirmation file. No QSO data and no data identifying you or your station is included. The data looks something like this:

5R8GZ

VP5/WB2REM

W4CU

VE3EJ

. . .

This anonymous file containing nothing but unique callsigns will be uploaded to www.wd5eae.org, checked against the HB9BZA list and then callsigns not already included in HB9BZA’s list will be forwarded to HB9BZA for inclusion in his LoTW Users List.

You can view the data that is sent each time by turning on the “Automatically View These Files When

Generated checkbox.:

Please see http://www.hb9bza.net/lotw/ for information about the LoTW Users List project. Please participate as it costs you nothing in time or privacy.

6) If you would like all your passwords stored, leave the  option checked.



Passwords are stored in an encrypted format, not plain-text.

7) Set the “Delete ADIF and TQ8” checkbox to your preference.

The program can either save or automatically delete the LoTW ADIF and signed TQ8 files based on your selection. I have historically saved these files and the feedback I have gotten is that many other LoTW users do likewise. Since the uploads can always be regenerated if necessary, and since you can download your LoTW records I don’t know of a compelling reason to archive them but the option is available if you prefer.

8) Check your TQSL settings. Please take a moment and run TQSL. Select the menu Station / Edit locations

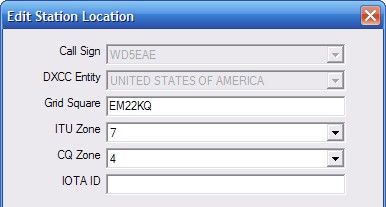

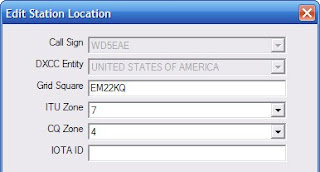

Select your location to bring up the Edit Station Location dialog.

Please make sure you have your location data entered into these fields. If you don’t enter them here, your LoTW recipients will not have access to this important information through LoTW ADIF downloads. Stations in the U.S. also have State and County fields which can be view by pressing the Next button at the bottom of this dialog.

IMPORTANT: You need to check one thing in Ham Radio Deluxe before you start using HRD Utilities. Go into Add Logbook Entry and turn Automatic Autofill off. Do not use Autofill. The Autofill function in Ham Radio Deluxe copies a lot more information into your new QSO record than you may want including the Custom fields from the previous contact. HRD Utilities uses Custom5 and Custom 6 to track LoTW uploads and if you use Autofill you will have to manually delete these field values in your new QSO records.

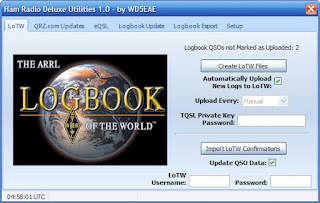

That completes setup. You can click the LoTW tab in HRD Utilities, or one of the other tabs, to use the program.

3)  Please do a backup of your Ham Radio Deluxe database. Simon includes a very simple one- click button in HRD to accomplish this. If you need help doing this contact me. This is just basic safety to protect your data.

2) Locate your TQSL Private Key Password.

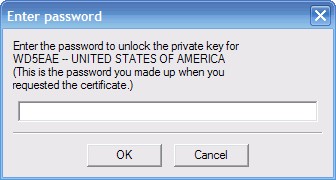

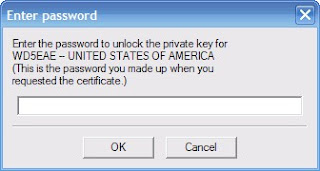

When you use TQSL to sign a log file a dialog like this should appear:

TQSL Private Key Dialog

Ham Radio Deluxe Utilities can automatically enter this for you each time a log file is signed. On the main screen of the Utilities program notice the “TQSL Private Key Password” field.

3) You must enter the password into the HRD Utilities field to turn automatic uploads on. Otherwise the TQSL program would be run every X hours and never close until you return to the computer to enter the password.

This field is not currently saved as part of the program configuration. Each time you restart HRD Utilities it will be blank. This is for security. I might make this an option later if I get enough requests.

Note: The LoTW, QRZ.com and eQSL.cc images are all clickable. If you click an image you will be taken to the web site for that particular service.

Now,   with   setup   complete   you   can   go   back   to   the   LoTW   tab   and      either   click   the

button  or  change  the



For first-time users I suggest you leave it on Manual and try manually generating and uploading a LoTW file. This will test whether everything is setup properly and whether your Internet connection is available to the HRD Utilities program.

Note: After the ADIF file is generated, TQSL is run to sign the ADIF. If you’ve entered your private key password into HRD Utilities, HRD Utilities will automatically enter it into TQSL for you. The TQSL password dialog will appear when the file is ready to be signed. Do not cancel the TQSL dialog. It may be instant or it may take up to a few seconds (based on the O/S and the speed of your computer) for HRD Utilities to handle the dialog.

Some users may have already uploaded all data to LoTW using HRD generated ADIF files.  I



Custom5 fields as uploaded. You can ignore the ADIF and TQ8 files generated in this case.

NOTE: If an upload fails, it opens up a web browser to the LoTW upload page so you can manually upload the file.

If you are using ZoneAlarm or another security suite, you may have various alerts raised by HRD_Utils.exe and M_TQSL.exe. HRD_Utils.exe accesses the LoTW web site using SSL, and will access  the  DNS  server  to  determine  the  IP  address  of  LoTW.  HRD_Utils.exe  also  runs  the M_TQSL.exe program. M_TQSL.exe is used to automatically enter the private password into TQSL. M_TQSL.exe does not need Internet access.

You can download an ADIF file of LoTW confirmations from the ARRL web site. HRD Utilities will parse this file and add the date the LoTW confirmation was received in the Custom6 field of the HRD database.

If you want HRDU to download the Confirmation ADIF file from the LoTW web site then enter your

LoTW web site into the appropriate fields:

When LoTW files are processed by HRDU the data contained in the LoTW confirmation file overwrites anything contained in the Ham Radio Deluxe database. If                                 is turned off, this only means the confirmation date, but if                                 is turned on then it includes Grid Square, CQ

Zone,  ITU  Zone,  DXCC  country code, State,  County,  IOTA,  and  Continent  codes  if  that  data  is

contained in the QSO record of the ADIF file.

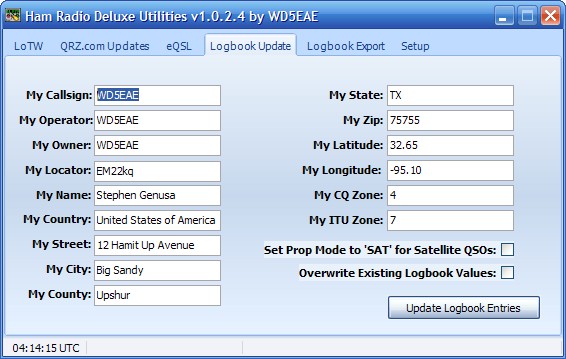

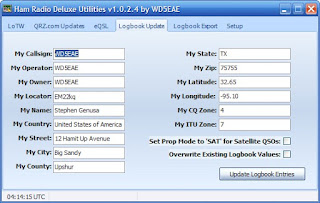

On the “Logbook Update” tab you will find various fields which mirror information you may have setup in Ham Radio Deluxe. In HRD you enter this information by selecting the Logbook pulldown menu. Then select Configure and then My Station. Once you’ve set this information up in Ham Radio Deluxe, HRD will place this information in each QSO record you add. But there are situations where this doesn’t happen. For example, I operate contests and import that QSO data into HRD. Those imported records are missing all this information. Additionally, some of my earliest log entries were made before I entered this information into HRD. This tab in HRD Utilities will allow you to modify records that either have no value entered, or it can update all (overwriting existing data) records in your HRD database.

If  you’ve  only  operated  from  one  location  I  suggest  you  setup  HRD  to  automatically  enter  this information for all new contacts. (Logbook / Configure / My Station) and then run this routine on an as- needed basis.

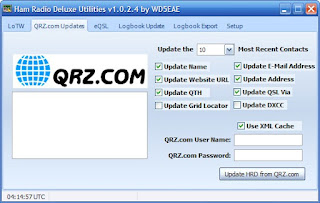

QRZ.com provides a subscription based callsign lookup service. The service is advertisement free since it is a subscription service which uses XML downloads. If you subscribe to this service HRD Utilities can update contact records in your logbook.

If the QRZ.com lookup fails for a particular callsign the listbox will note the callsign was “not found”. This will occur for any callsign which is not in the QRZ.com database. My experience is that these “not found”  callsigns  are  rare.  They may  include  some  special  event  callsigns,  some  special  contest callsigns and occasionally non-U.S. callsigns.

Note: There are different kinds of subscriptions to QRZ.com. One subscription is the “ad free” subscription. Another includes the XML callsign lookup service. And another is for the XML service only. You need at least the Data Only (XML) subscription to use this feature. http://www.qrz.com/i/subscriptions.html

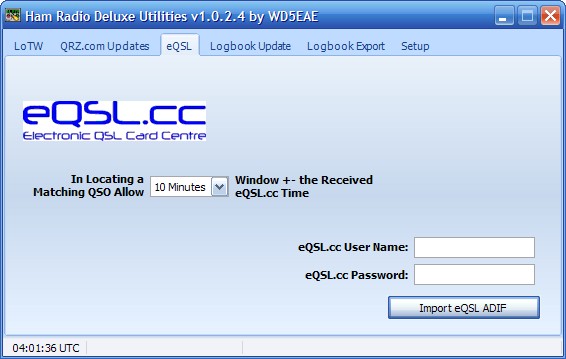

You can import eQSL.cc confirmations into your Ham Radio Deluxe database. You can either manually download an ADIF from your Inbox of received eQSL cards and have HRDU process that ADIF file, or you can have HRDU download the ADIF for you and then process the confirmations.

The eQSL.cc ADIF file and matching eQSL.cc “QSLs” have a date/time on them which is provided by the station who sends the eQSL card. This date/time will not exactly match the date/time in your log unless both stations are using computers which were synchronized with a matching time service or GPS. HRDU compensates for this time difference by looking for matching QSOs within a time window. You can set the time window from 5 minutes plus or minus the date/time returned by eQSL.cc (giving you a 10 minute window) on up to 60 minutes plus or minus the date/time returned by eQSL.cc (which is a 120 minute window).

If you want HRDU to download the eQSL confirmations  then enter your eQSL.cc username and password in the proper fields. If you manually download the ADIF file and want those entries entered

into your logbook then just click the   button and select the eQSL.cc Inbox ADIF file which you downloaded.

There is a real advantage to using both LoTW and eQSL.cc. If you are using both LoTW and eQSL.cc and the remote station is also, you will find that in a number of cases there are discrepancies through human or computer error.

If HRDU is unable to match particular records found in your eQSL.cc ADIF, a text report is generated and automatically displayed after the import process is complete. You can print this file out and then check your logbook entries in Ham Radio Deluxe to see why any particular eQSL records did not match. You can also check to see if the remote station is uploading to LoTW and determine if you received an LoTW match. The eQSL import error log may help determine why an LoTW confirmation was not received.

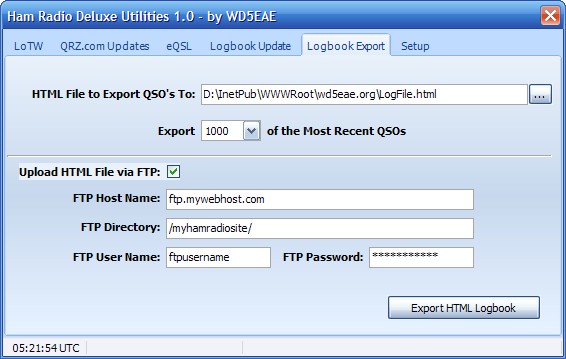

This tab is capable of creating a new web page or of updating a web page which has been customized for the particular style of your web site. If you start by generating a new HTML page using this routine, it will create for you a basic HTML web page which you can modify. Once you’ve generated your first page, open it with your html editor. You can modify everything above the line which says

<!– BEGINNING OF AUTOMATED SECTION –>

And you can modify everything below the line which says

<!– END OF AUTOMATED SECTION –>

Please DO NOT remove these two lines from your HTML file and do not place anything else on these particular lines.

When a new file is generated and opened in Internet Explorer you may see an Internet Explorer security alert:

This is because the new file has Javascript in it which color codes alternating lines of the HTML page. You can remove this Javascript if you prefer or replace it with something else.
